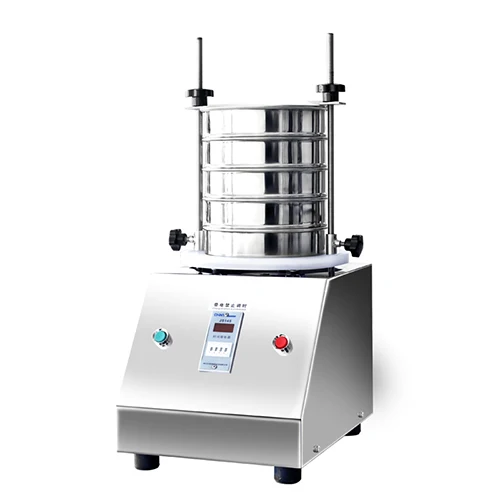

Laboratory Vibrating Sieve · Precision Particle Size Analysis & Lab Test Sieve Shaker
-
Covers 20 μm–20 mm particle size range for rapid distribution analysis
-
Stackable 1–8 test sieves for multi-grade screening tests
-
Compact, low-noise < 60 dB design, ideal for laboratory settings
Laboratory Vibrating Sieve · Precision Particle Size Analysis & Lab Test Sieve Shaker
-
Covers 20 μm–20 mm particle size range for rapid distribution analysis
-
Stackable 1–8 test sieves for multi-grade screening tests
-
Compact, low-noise < 60 dB design, ideal for laboratory settings
Product Overview
The laboratory vibrating sieve (test sieve shaker) is a precision device designed for small-batch material testing, particle size analysis, and laboratory sieving. Compact, lightweight, and easy to operate, it enables quick determination of particle size distribution. It is widely used in research institutes, laboratories, quality control, and small-scale production.
How It Works & Video Demo
Driven by a vibration motor or electromagnetic vibrator, the sieve stack is subjected to both vertical and horizontal vibrations. Materials are stratified through multiple sieves according to particle size, enabling particle size distribution analysis or impurity removal.
Built Around Your Workflow · Practical Innovation · Total Cost Control
Why Choose Our Laboratory Vibrating Sieve
Flexible Multi-Deck Sieving
Feature: Stackable 1–8 test sieves for flexible setups
Data: Delivers 2–9 particle size fractions in a single run
Benefit: Saves testing time, eliminates repetitive operations
Compact & Low-Noise
Feature: Compact structure with optimized noise reduction
Data: Operating noise < 60 dB
Benefit: Suitable for labs and office environments without interference
Easy Operation & Maintenance
Feature: Quick clamp mechanism,Intuitive operation panel
Data: Sieve changeover ≤ 1 minute,Operators can easily adjust the amplitude and sieving time
Benefit: Fast material switching, simple maintenance, low training cost
High-Precision Testing
Feature: Electromagnetic vibration drive with adjustable frequency
Data: Particle size analysis down to 20 μm
Benefit: Delivers reliable particle distribution data for research and QC testing
Strong and durable
Feature: Built with high-quality stainless steel or carbon steel materials.
Data: 316/304 stainless steel
Benefit: Not easily damaged after long-term use.
Compliance & Traceable Documentation
Feature: Clear sieve list, lead time, and calibration services
Data: Standard delivery within 7–15 days; remote technical support available worldwide
Benefit: Transparent purchasing, low risk, and global after-sales coverage
Applications: Industries & Typical Materials
-
Food: flour, starch, sugar powder, coffee powder, spice sample testing
-
Pharmaceutical: medicinal powder, granules, raw capsule material analysis
-
Chemical: resin powder, ceramic powder, metallic powder laboratory tests
-
Education & Research: particle science studies, laboratory QC testing
-
Environmental: soil, sediment, solid particles in wastewater analysis
Technical Parameters
-
Suitable sieve diameter: Φ75 – Φ400 mm
-
Number of decks: 1 – 8 layers
-
Particle size range: 10 μm – 20 mm
-
Capacity: 0.02 – 5 kg/batch
-
Vibration frequency: 1400 – 3000 times/min
-
Power supply: 220 V / 50 Hz or customized
-
Noise level: < 60 dB
FAQ & Downloadable Guides
Q: Can it be used for liquid testing?
A: Yes, with optional wet sieving accessories.
Q: Is it compatible with standard test sieves?
A: Yes, compatible with Φ200 / Φ300 mm ISO / ASTM sieves.
Q: Do you provide calibration services?
A: Yes, factory calibration reports and third-party certification are available.
